BKTT
ESCape32 BKTT cupcake 25a ESC with 5A BEC! 1/24- 1/18 scale (will require the WiFi linker for tuning - one time purchase) supports 2-6s (5s - 6s requires external capacitor)
Couldn't load pickup availability
WiFi linker is needed for making changes! basic tune set. These are not plug-in play. More tuning is required for certain motors or gear changes. The tune set by us for shipping works for a lot of motors and we have tunes but they’re not always 100%.
https://a.co/d/2ZRD2N3 For the WiFi linker. We are sold out!
Cupcake 25a ESC using the new Dedicated ESCape32 board designed for crawlers and powered by NEOXIC firmware and has a stacked 5A adjustable BEC via the WIFI linker to accommodate 4ws with power hungry servos. These use the latest Escape32 FW version rev 12.5 and has more options of tuning than am32 when paired with the WIFI linker! Also available on the store. Each ESC is preloaded with the latest firmware and set to a basic tune! these ESCs will handle 2 - 6s lipos ( 5-6s requires external cap of 470uf!
3S Lipo is recommended for operation ( You’ll have better operation and performance with a 3S lipo) These are not plug-in play, and will require tuning via your phone. Contains open source firmware
ESC features:
- adjustable 5A BEC via tuner for those hungry servos
- BEC options 5A adjustable to 5.5v 6.5v 7.4v and 8.4v
- Supports 2 - 6s operation (2 - 4s is common)
- Burst current 50A
- better heat dissipation due to added copper infill in between the layers.
- customizable startup music
- Proportional brake drag brake
- sine start up mode, brushed mode
- Dimensions - Size: 28mm x 12mm x 10mm

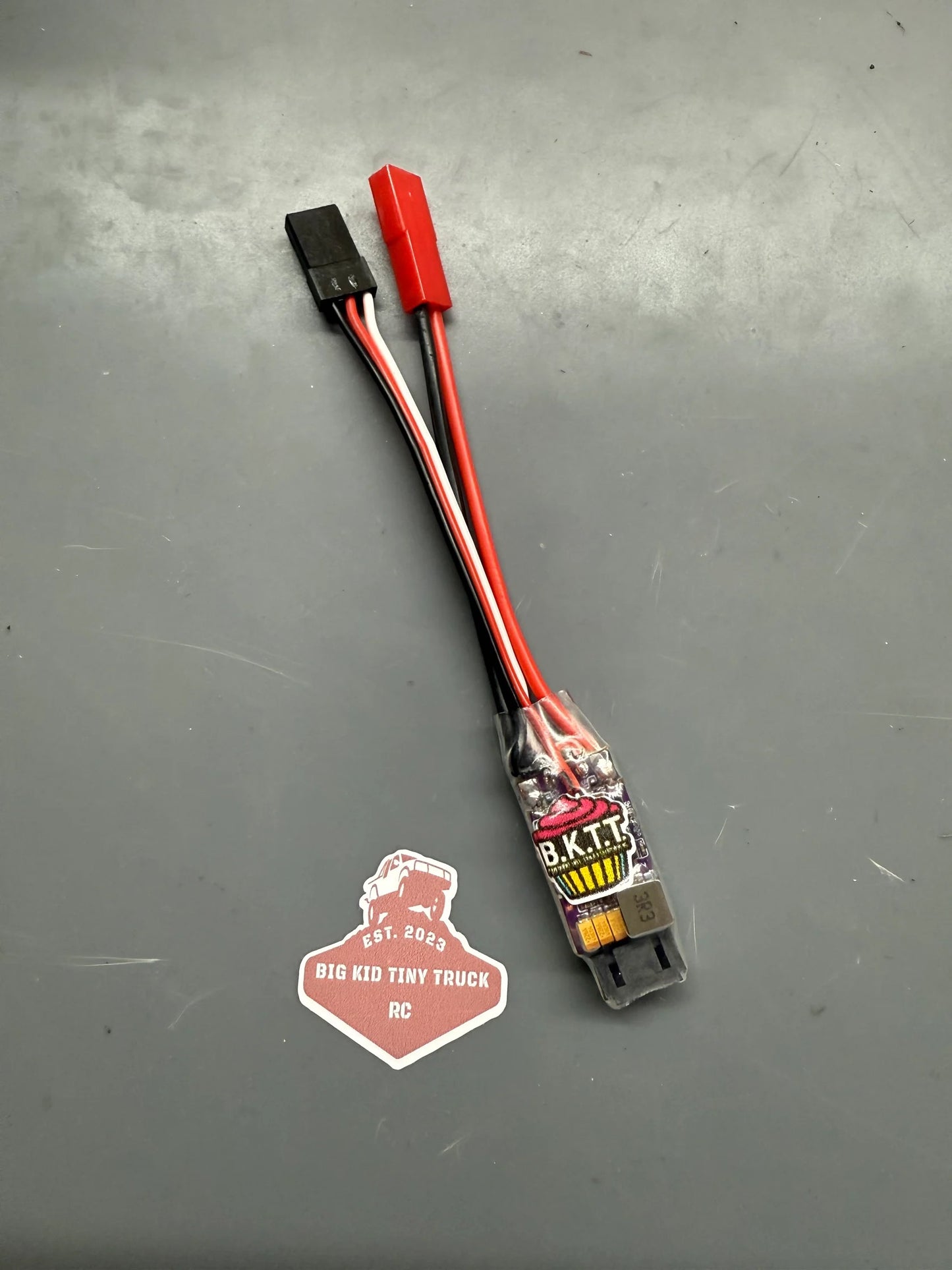

These can run brushed mode! Once the brushed box is selected the unused settings will be grayed out. Make sure duty ramp is 0. Picture is above for motor plug orientation. Middle pin will always be for the red lead
Any changes to the ESCs wiring or ESC itself other than firmware updates will void the warranty! we provide a 30 day hardware warranty against hardware defects! Unfortunately we cannot warranty the firmware as it is open source. Any changes or modifications to the ESC or water damage does void the warranty.
